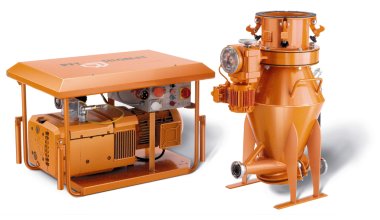

The PFT SILOMAT transports dry motors pneumatically and fully automatically to a mixing pump or a continuous mixer directly out of the silo/container.
The PFT SILOMAT is available with different conveying capacities as portable, rollable and trailer version.
PFT SILOMAT, for free fall and gravity silos.
PFT DF-SILOMAT, for pressurized and non-gravity silos. PFT COMBI-SILOMAT, for gravity and non-gravity silos.

Technical Data SILOMAT E140
conveying distance up to 80/140m
conveying capacity approx. 20kg/mn
drive capacity 5.5/7.5 kw
power supply 32A/400V-3 phase, 50Hz
cable connection 5x4 mm2 EC-plug
max. pressure p=2.5 bar
air capacity approx. 100/140 Nm3/h
dimensions L/W/H 2320/1530/1230 mm
conveying bin height 1000mm
conveying bin volume 551
conveying bin height 90 kg
total weight 430/450 kg
