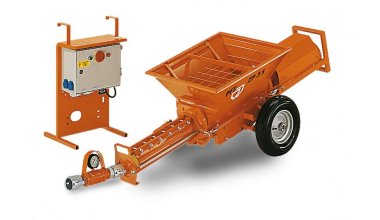

The Conveying pump PFT ZP3 conveys the wet mortar (mixed by a hrizontal mixer, a drum mixer, etc.) directly to the place of application. The supply of mortar to the pump can be controlled by a level sensor in the pump hopper.
The PFT ZP3 is started either by remote control (cable or radio remote) or by air (if spray mortar is applied). It just cannot be easlier.
The variable drive of the PFT ZP3V enables the capacity to be infinitely regulated and exactly dosed.
|
| Technical Data |
PFT ZP3s / ZP3v |
| conveying capacity |
5-140 l/mn |
| conveying pressure |
max. 30bar |
| conveying distance |
up to 100/120m |
| drive capacity |
5.5/7.5 kW vario
175/60-190rpm
400V 3-phase, 50Hz/60Hz |
| hopper content |
85l |
| filling height |
520/540mm |
| dimensions L/W/H |
2140/700/(520/540)mm |
| module weights |
| drive: |
51/90kg |
| control unit: |
24kg |
| pump shaft |
5kg |
|
| total weight |
210/285kg |
|
|
